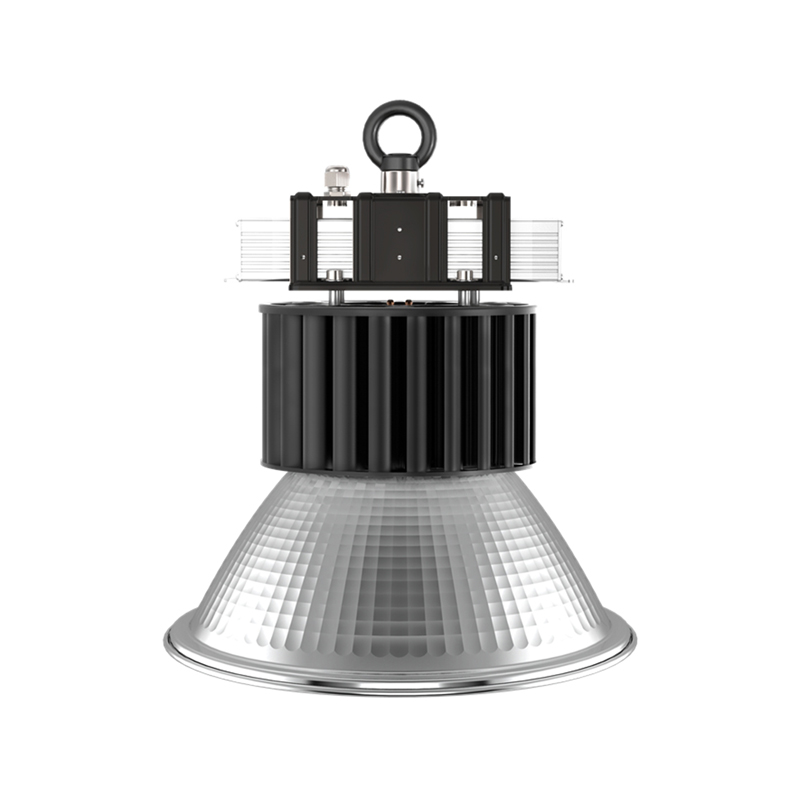

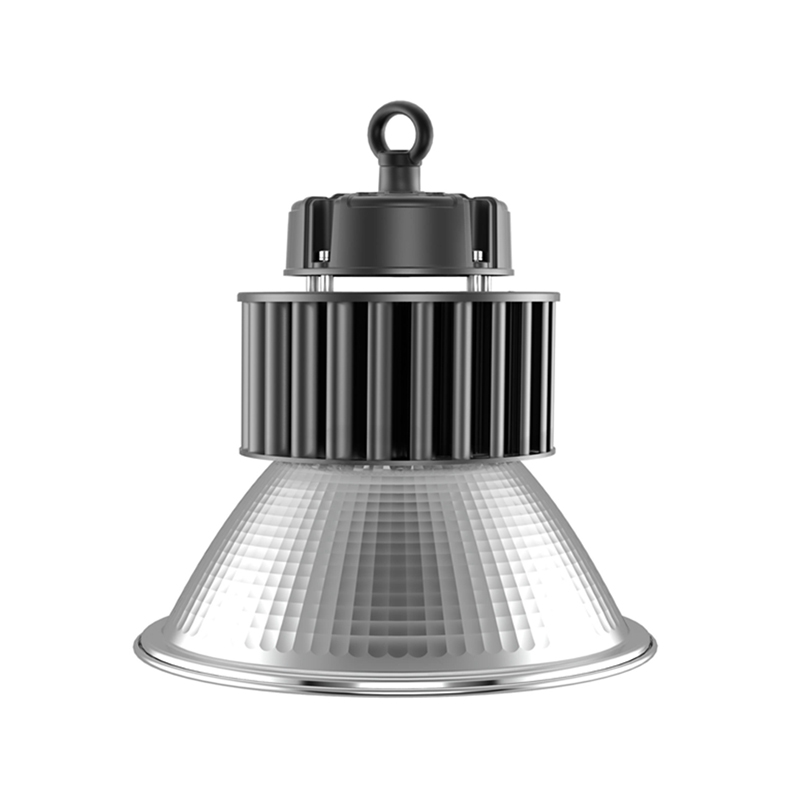

FJ-IL-XXCVX-G03 provides multiple lumen packages and distributions. This fixture offers the necessary optical freedom and flexibility to meet the needs of a wide variety of lighting applications. It is a direct replacement of traditional HID fixtures.
PRODUCT FEATURES
-The flake structure reflects the light evenly and significantly increases the light output efficiency of the lamp
-In total 6 size scale-type reflector, effectively improve light utilization
-Tube,hook ring,E40 thread base,adjustable bracket,4 kind convenient installation ways for optional
-Support square and round driver,apply more widely
-High efficient copper heat pipe directly with the zero-distance heat bonded
| Efficacy (lm/W) | 110lm/w |
| Power (W) | 100 W, 150 W, 200 W, 240 W |
| CCT (K) | 3000K, 4000K, 5000K, 6000K |
| Voltage | AC 100-277 V 50/60 Hz |
| Beam Angle | 60/90/120° |
| CRI | Ra>70 (Default) / Ra>80 |
| Power Factor(PF) | PF＞0.95 |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Working Environment | -20℃～+50℃，10%～90%RH |
| Lifespan L70 at 25℃ | ＞50,000hrs |
| Body Material | ADC12 die-cast |
| Housing Color | Black(available on request) |
| Cover Material | PMMA |
| Mounting Type | Tube/Bracket/Hook mounted |
| Dimmable | DALI, 0-10V, PWM,Auto dimming with five independent levels, Smart control management system |
| Protection Class | Class Ⅰ(Defauit)/Class Ⅱ |
| Standards | CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP65, IK08 |
| Available on request | Microwave induction function,Light compensation function |
| Reasonable tolerance | Watt: ±10%，CCT: ±500K, Lumen efficiency: ±5% |
Shanghai FuJing Lighting Technology Co., Ltd. is China INDOOR IP65 INDUSTRIAL LAMP FJ-IL-XXCVX-G03 LED HIGH BAY LIGHT Suppliers, Factory.Which is engaged in the development of LED optical lighting products, production, sales and after-sales services, which is professional company. The company gathered a group of experienced professionals who has more than a decade experiences in LED lighting and electronic industries,and made a breakthrough in led lighting, lamps development and application.
In order to make up for all types of users whit the inconvenience of the LED applications, our company will provide technical support for LED applications by specialized technical without of the company. We will be the solid backing of customer and help clients to develop more market to make LED lighting in a wider area to be achieved. The main series of LED Light in our company are LED High Bay Light, LED Flood Light, LED Street Light, LED Down Light, LED Panel Light, LED Tube Light, and other products . Our products are widely used in factory, warehouse, park, plaza, shopping mall, counter, dance and home decoration.
