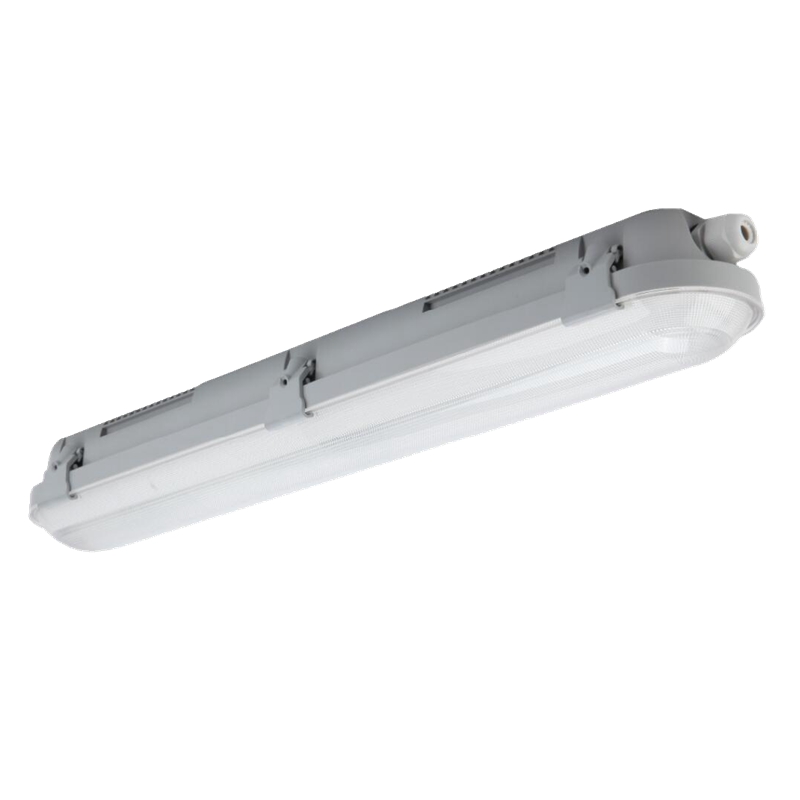

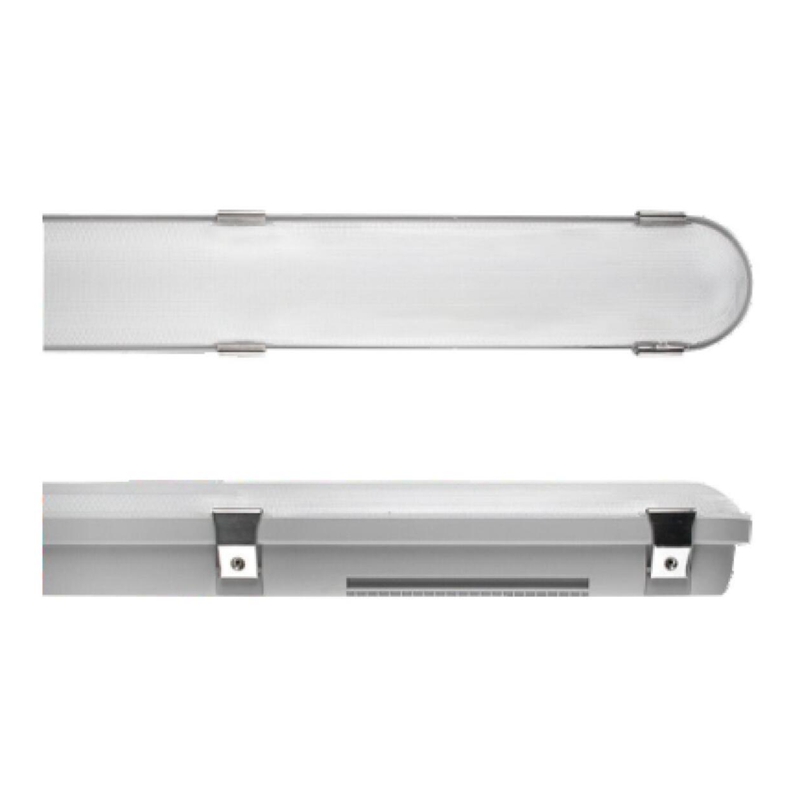

4FT OUTDOOR LINEAR BATTEN LIGHT WATERPROOF FJ-9A serie LED LINEAR LIGHT

Product description
Product specifications

The FJ-9A serie is designed for a variety of applications and mounting heights. Wide-angle optics, multiple lumen packages and color temperatures make it ideal for industrial, commercial, manufacturing, gymnasium and other applications, that utilize traditional linear fluorescent and HID fixtures. Suggested mounting heights are between 15 -25 feet. This high bay reduces up to 70% of the energy usage and has a life span of over 10 years. This fixture is available in a frosted or clear lens.

Product Details

Efficacy (lm/W)	115-150 lm/W
Power (W)	18 W, 30 W, 38 W, 56 W
CCT (K)	3000K, 4000K, 5000K, 6000K
Voltage	AC 100-277 V 50/60 Hz
Beam Angle	120°
CRI	Ra>70 (Default) / Ra>80
Power Factor(PF)	PF＞0.9
THD	<15%
IP Rating	IP65
IK Rating	IK08
Working Environment	-20℃～+50℃，10%～90%RH
Lifespan L70 at 25℃	＞50,000hrs
Body Material	Aluminum alloy
Housing Color	Grey (available on request)
Cover Material	UV-resistant Polycarbonate
Mounting Type	Wire suspened,Pipe suspended,Surface mounted,Hoop mounted
Dimmable	1-10V Dimming (Optional)
Protection Class	Class Ⅰ(Defauit)/Class Ⅱ
Standards	CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IK09
Available on request	Microwave senor, DALI Dimmable
Reasonable tolerance	Watt: ±10%，CCT: ±500K, Lumen efficiency: ±5%

FUJING LIGHTING

PURSUE QUALITY AND CAST FINE PRODUCTS.

Shanghai FuJing Lighting Technology Co., Ltd. is China 4FT OUTDOOR LINEAR BATTEN LIGHT WATERPROOF FJ-9A serie LED LINEAR LIGHT Suppliers, Factory.Which is engaged in the development of LED optical lighting products, production, sales and after-sales services, which is professional company. The company gathered a group of experienced professionals who has more than a decade experiences in LED lighting and electronic industries,and made a breakthrough in led lighting, lamps development and application.

In order to make up for all types of users whit the inconvenience of the LED applications, our company will provide technical support for LED applications by specialized technical without of the company. We will be the solid backing of customer and help clients to develop more market to make LED lighting in a wider area to be achieved. The main series of LED Light in our company are LED High Bay Light, LED Flood Light, LED Street Light, LED Down Light, LED Panel Light, LED Tube Light, and other products . Our products are widely used in factory, warehouse, park, plaza, shopping mall, counter, dance and home decoration.
