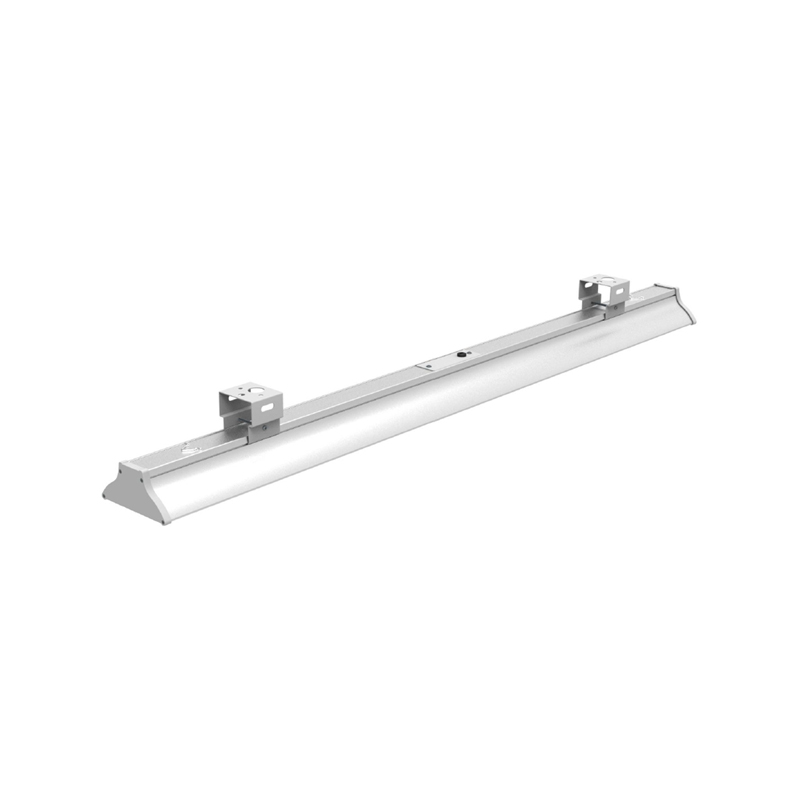

LED LINEAR LIGHT FJ-Cynthia Series

  • Product description
  • Product specifications

The FJ-Cynthia Series is designed for a variety of applications and mounting heights. Wide-angle optics, multiple lumen packages and color temperatures make it ideal for industrial, commercial, manufacturing, gymnasium and other applications, that utilize traditional linear fluorescent and HID fixtures. Suggested mounting heights are between 15 -25 feet. This high bay reduces up to 70% of the energy usage and has a life span of over 10 years. This fixture is available in a frosted or clear lens.

Product Details

Efficacy (lm/W) 150 lm/W
Power (W) 60 W, 75 W, 120 W, 150 W, 180 W
CCT (K) 3000K, 4000K, 5000K, 6000K
Voltage AC 100-277 V 50/60 Hz
Beam Angle 60°,90°,120°
CRI Ra>70 (Default) / Ra>80
Power Factor(PF) PF>0.9
THD <15%
IP Rating IP30
IK Rating IK07
Working Environment -20℃~+50℃,10%~90%RH
Lifespan L70 at 25℃  >50,000hrs
Body Material Aluminum alloy
Housing Color Dark Grey/Black/Light Grey/Silver (available on request)
Cover Material UV-resistant Polycarbonate
Mounting Type  Wire suspened,Pipe suspended,Surface mounted,Hoop mounted
Dimmable  1-10V Dimming (Optional)
Protection Class Class Ⅰ(Defauit)/Class Ⅱ
Standards CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IK09
Available on request  Photocell, Motion sensor, DALI Dimming
Reasonable tolerance Watt: ±10%,CCT: ±500K, Lumen efficiency: ±5%
