Home / Products / LED STREET LIGHT / LED STREET LIGHT FJ-Helios Series

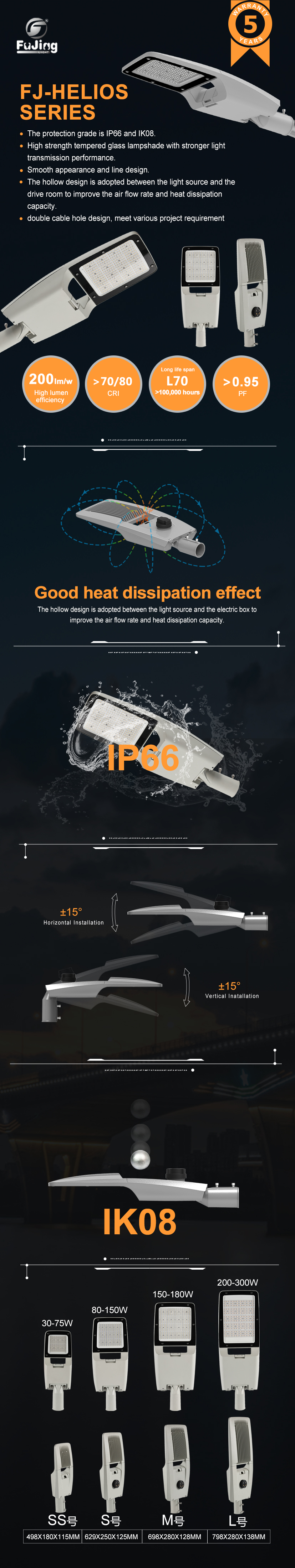

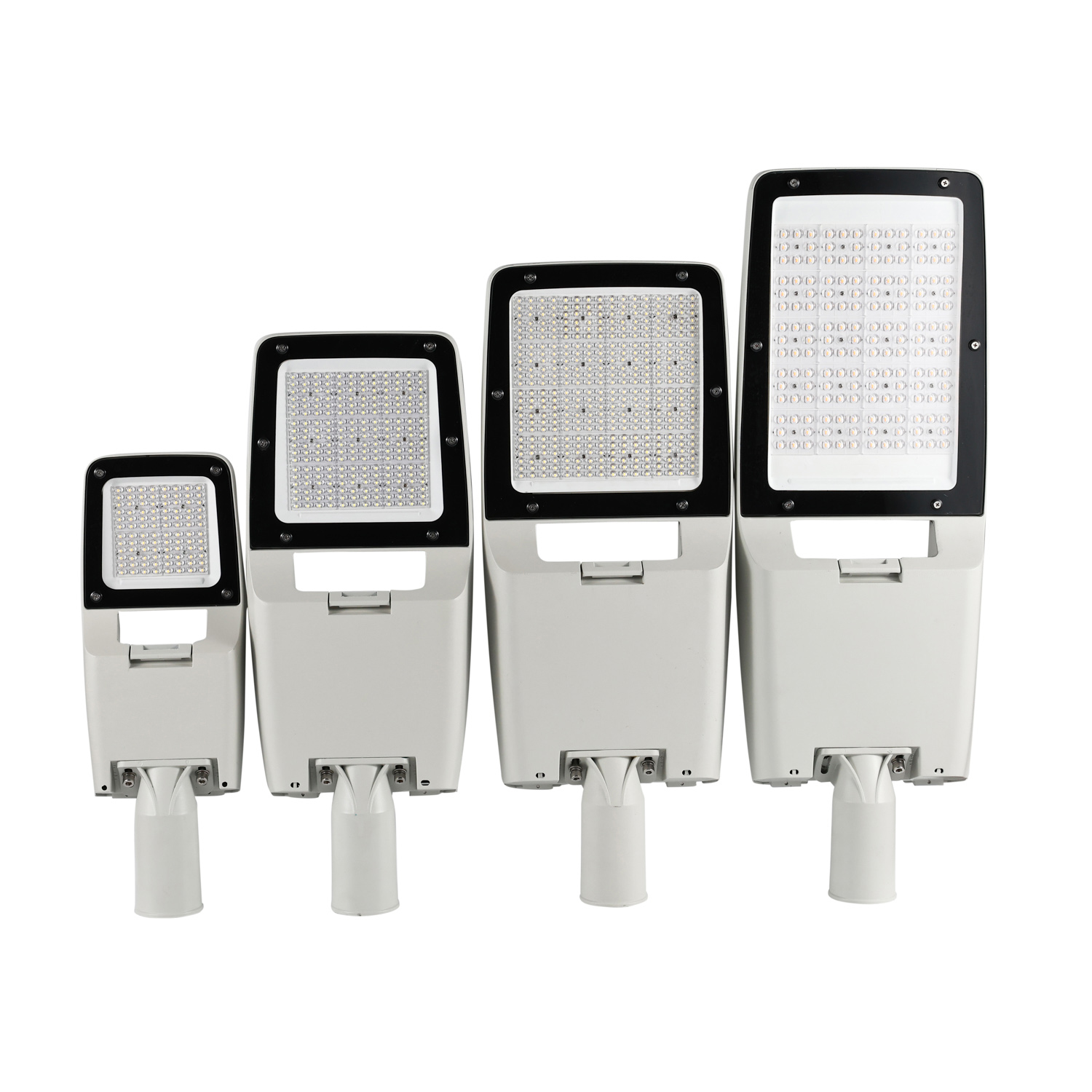

LED STREET LIGHT FJ-Helios Series

  • Product description
  • Product specifications

PRODUCT FEATURES
-Smooth appearance and line design.
-Up to 100,000hrs @ L70, low maintenance cost.
-It can be installed horizontally and vertically, and the adjustable angle is ± 15 °.
-The protection grade is IP66 and IK08.
-Tool-less opening of driver box, ease of maintenance.
-ADC12 high-pressure cast aluminum one-piece shell great help for heat dissipation.
-High strength tempered glass lampshade with stronger light transmission performance.
-The hollow design is adopted between the light source and the drive room to improve the air flow rate and heat dissipation capacity.
-Type Ⅰ/Ⅱ/Ⅲ/Ⅳ/Ⅴ light distribution can meet the different requirements of road lighting.
-Strobo-free stable optical output, power factor 0.95 Maintain the stability of the power grid.

Product Details

Efficacy (lm/W) 130lm/w
Power (W) 20W,30W,50W,60W,80W,100W,120W,150W
CCT (K) 3000K, 4000K, 5000K, 6000K
Voltage AC 100-240 V 50/60 Hz
Beam Angle 140*70°
CRI Ra>70(Default) / Ra>80
Power Factor(PF) PF>0.95
IP Rating IP66
IK Rating IK08
Working Environment -20℃~+50℃,10%~90%RH
Lifespan L70 at 25℃  >50,000hrs
Holder 50mm/60mm(Default)
Body Material  High pressure die-cast aluminum
Housing Color RAL9007(available on request)
Cover Material UV-resistant Polycarbonate
Mounting Type  Side entry or Vertical pole mounted ±15°
Dimmable  1-10V Dimming /Timer Dimming/Dali Dimming
Protection Class Class Ⅰ(Defauit)/Class Ⅱ
Standards CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK08
Available on request  Solar Compatible, NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, NTC, OLC, DALI Dimming
Reasonable tolerance Watt: ±10%,CCT: ±500K, Lumen efficiency: ±5%
